Integrated Metal Equipment Room RM-ZHJF-ZZ-6

Short Description:

The equipment room includes security door, variable door frame, variable distribution frame, variable equipment frame, AC distribution box, etc. The machine room has high cutting resistance, damage resistance, beautiful, can meet a variety of color customization, to meet the needs of various outdoor scenes in multiple industries.

We are the Factory that guarantees supply chain and product quality

Acceptance: Distribution, Wholesale，Custom，OEM/ODM

We are China’s famous sheet metal factory, is your trusted partner

We have a big brand of cooperative production experience（You’re next）

Any inquiries→ We are happy to reply, please send your questions and orders

No MOQ limit，any installation can be communicated at any time

Maximum external size: 3100mm ×2100mm×2800mm(L*W*H)

3100mm ×2100mm×2800mm(L*W*H) Floor size: 3000mm×2000mm(L*W)

Foundation footprint size: 3600mm×2800mm(L*W)

Send email to us whatsapp

Product Detail

Product Tags

In order to quickly install outdoor communication equipment, power equipment, monitoring equipment, etc., and achieve special needs such as rapid layout, installation, and subsequent secondary transfer, our company has designed an outdoor integrated metal machine room. The machine room includes anti-theft doors, variable gantry frames, variable wiring racks, variable equipment racks, and AC distribution boxes. The machine room has high anti cutting and anti damage capabilities, is beautiful and elegant, and can meet various color customization, It meets the needs of multiple industries in various outdoor scenarios and can be applied to communication base station rooms, power equipment rooms, outdoor unmanned equipment rooms, and so on.

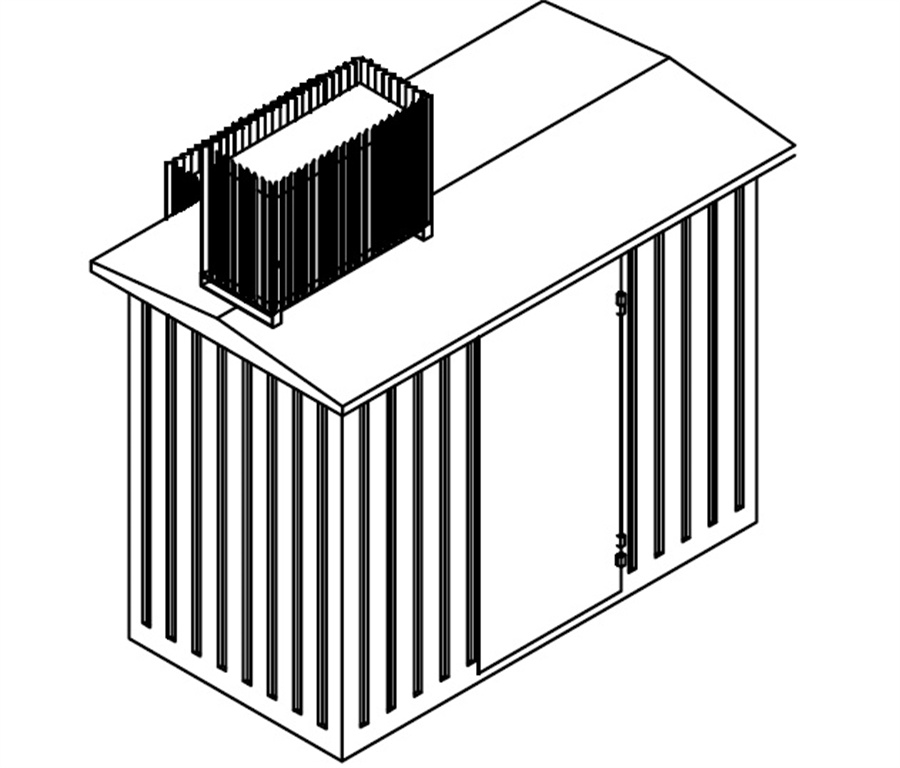

RM-ZHJF-ZZ-6 The computer room is designed as an integrated structure with a floor area of 3 meters * 2 meters and a service life of 20 years (on-site assembly structure can be customized according to the specific location). The comprehensive computer room can install air conditioning, inter column air conditioning, rack air conditioning (or wall mounted air conditioning), mains power distribution box (standard in the computer room), DC switch power supply, battery, transmission equipment (operator equipment), fiber optic fusion unit, monitoring unit, etc, The space capacity is equal to 6 square meters of the computer room.

Characteristics

1. Integration: The computer room has a very high level of integration, possessing most of the characteristics that ordinary computer rooms should possess. It is superior to outdoor cabinets and prefabricated rooms, and can be suitable for various scenarios
2. Aesthetics: The computer room has a high level of aesthetics, and its appearance is more designed than traditional board rooms and cabinets, capable of meeting high requirements for appearance
3. Flexible space utilization: The internal capacity distribution of the computer room is reasonable, greatly utilizing the maximum capacity of equipment within 6 square meters, and ensuring sufficient heat dissipation and backup power configuration
4. Convenient management: The internal routing of the computer room is clear, cables are managed separately, and areas are clearly divided. After installing equipment, the computer room is clean and tidy, making it convenient for later maintenance and management
5. Anti theft strength: The machine room structure is integrated welding, and the machine room door adopts our self-designed patented anti theft structure. The strength is superior to ordinary anti theft doors, and the lock has excellent shielding protection, greatly reducing the occurrence of machine room doors being pried or equipment loss (the protection success rate can be guaranteed at 98%). An electronic anti theft door lock solution can also be provided
6. Space flexibility: The internal space of the computer room has a large margin and can be flexibly adjusted, including the arrangement of 5 large air conditioners and the separate design and configuration of heat dissipation devices.
7. Exterior paint spraying: Flexible selection of exterior paint surfaces (spray molding, high gloss paint, real stone paint, etc.)
8. Material composition

real stone paint

Installation conditions of computer room

1. Transportation conditions: the customer should design according to the maximum unit size of the sea container to ensure that the products can be transported in and out of the container.
2. Entry requirements: the machine room weighs 2 tons, and it needs to be hoisted by crane as a whole, and vehicles need to reach the vicinity of the installation point directly, which is convenient for crane hoisting. .
3. Cement foundation: the customer shall construct and manufacture it according to the basic standard design drawings, including lightning protection and grounding (the basic design drawings are provided by our company)..

Available space (e.g. for communication base station)

1. Battery capacity: the machine room is equipped with an independent battery rack, which can accommodate up to 16 100AH standard 19-inch step batteries, and can also be equipped with independent trays to install foreign lithium batteries and lead-acid batteries..
2. Introduction of commercial power: The machine room is equipped with an independent dedicated commercial power box, which is located in the machine room. Double commercial power or a group of commercial power and a group of oil engines can be introduced for power generation, which will be introduced by the construction unit..
3. DC power supply: the machine room is equipped with a switching power supply rack, which can support 600AH switching power supply at most.
4. Equipment capacity: The machine room is equipped with 3 sets of 45U equipment racks, which can be used to install BBU, mobile ring monitoring, edge server, transmission equipment, fused fiber unit, GPS equipment, etc...
5. Variable function: the internal capacity of the computer room is large, which can be extended to use many scenes. The manufacturer can also cooperate to adjust the internal structure to meet the space requirements of various changing scenes of the branch, including the appearance color.
