Optic fiber Melter Machine RM-FEM
The RM-FEM series fiber optic melting machine summarizes the common human and tool reasons that occur during the use of traditional fiber optic quick connectors, leading to the inability of the fiber optic end face to meet the standard docking requirements, thereby affecting the attenuation of the entire optical path. This product successfully solves the practical difficulties of irregular and unclean fiber optic end face cutting, greatly reducing the attenuation caused by the cutting process. It is a highly innovative professional product, It is also a unique product globally
Technical Principles
Optical fiber melting end machine is used for optical fiber end surface melting polishing processing equipment, with the function of optical fiber end surface detection. Not only can the optical fiber end surface be polished into a sphere through melting treatment to eliminate the optical fiber end surface shear, but also can observe the process and effect of optical fiber end surface polishing in real time, improve the efficiency of optical fiber end and ensure the optical performance of optical fiber connection.
Solve the following fiber end face issues
Principle of discharge fusion technology
Results after discharge fusion
Technical Parameter
Ribbon Description

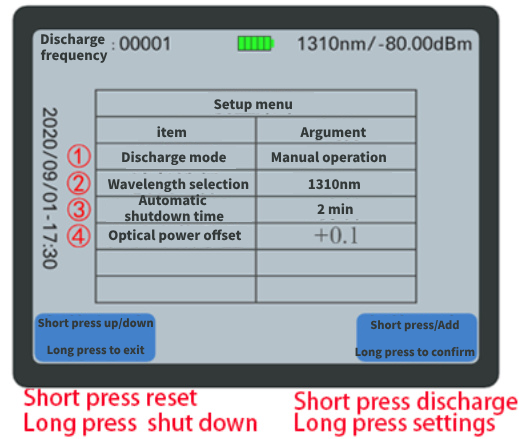

Settings menu interface
Long press the start button
Enter the Settings menu interface and press under the Settings menu interface ,Select and set the power button or start button, press the start button to confirm the parameter setting, and press the power button to exit the setting menu interface.
- ① Discharge mode: you can choose either manual or automatic modes .
Automatic mode: close the clamshell of the equipment to complete the automatic propulsion, image focus, optical fiber cutting situation judgment, discharge melting and melting end result judgment and other actions;
Manual mode: first press the start button to complete the action of automatic propulsion, image focusing and optical fiber cutting judgment, and press the start button again to complete the action of discharge melting and melting end result judgment; - ② Wavelength selection: test wavelength selection of 1270/1310/1490/ 1550nm;
- ③ Automatic shutdown time: you can choose 2 / 4 / 6 / 8 / 10 minutes automatic shutdown, you can also choose off
- Closed automatic shutdown function;
- ④ Optical power offset: according to the difference between the equipment display results and the test results of the calibration optical power meter
Value, manually increase and decrease the optical power value, "+" how much smaller than the optical power meter test result used for the calibration, and "-" otherwise.
Operating Steps (Example)
Packing list
|
Accessory Name |
Number |
Function |
|
|
1 |
Optic fiber Melter Machine |
1 |
- |
|
2 |
Optical cable cutting knife |
1 |
Cutting optical cables |
|
3 |
Power charger |
1 |
Charging the machine |
|
4 |
Fixed length guide rail |
3 |
Cut the optical cable at a fixed length and scrape off the coating layer of the cable |
|
5 |
Head mounted lamp |
1 |
lighting |
|
6 |
brush |
1 |
Cleaning the machine |
|
7 |
Melted Type optic fiber connector |
1 |
Test and proficiently use the machine |
|
8 |
toolkit |
1 |
Install all tools, diagonal span type |
|
9 |
instructions |
1 |
- |
Packing list
This RM-FEM series of products adopts standard corrugated cardboard boxes, with fumigated wooden trays at the bottom and protective film wrapped on the outer layer
Product Services
After sales service: This series of products is suitable for melting end products. Please consult our sales personnel for specific questions. For contact information, please refer to the contact channels on our official website
Standard service: This series of products is a standardized product suitable for the construction of fiber optic communication networks in various countries around the world. If you need to learn more about fiber optic systems or other extended products, please contact our customer service personnel, and we will do our best to answer and serve you
Instructions for use: For customers who have already reached a cooperation agreement, if you encounter any technical problems during the use process, you can consult our sales personnel 7 * 24 hours. We will wholeheartedly serve you and provide the most professional technical guidance
