Stepped cable tray RM-QJ-TJS

Short Description:

The series cable bridge is composed of straight section, bend pipe, irregular corner, component, support arm (boom), hanger, cover plate, etc. This series cable bridge is suitable for cable climbing, heating pipeline and other scenarios.

We are the Factory that guarantees supply chain and product quality

Acceptance: Distribution, Wholesale,Custom,OEM/ODM

We are China’s famous sheet metal factory, is your trusted partner

We have a big brand of cooperative production experience(You’re next)

Any inquiries→ We are happy to reply, please send your questions and orders

No MOQ limit,any installation can be communicated at any time


Product Detail

Product Tags

The RM-QJ-TJS series cable tray is completely designed by our company based on the actual needs of various industries, special scenarios, and tasks. This series of cable trays consists of straight sections, bends, irregular corners, components, as well as supporting arms (arm brackets), hangers, covers, etc. This series of cable trays is suitable for scenarios such as cable climbing and heating pipelines in buildings.The stepped cable rack has the advantages of light weight, high cost-effectiveness, and good ventilation and heat dissipation performance. Suitable for laying cables with larger diameters, especially for laying high and low voltage power cables.

Points for attention

  • 1) Cable trays, trunking, and their supports and hangers should be made of corrosion-resistant rigid materials or undergo anti-corrosion treatment when used in corrosive environments. The anti-corrosion treatment method should meet the requirements of the engineering environment and durability.
  • 2) In sections with fire protection requirements for cable trays, materials such as fire-resistant or flame-retardant boards, nets, etc. can be added to cable ladders and trays to form a closed or semi closed structure. Measures such as applying fire-resistant coatings to the surface of the cable tray and its supports and hangers should be taken, and its overall fire resistance performance should meet the requirements of relevant national regulations or standards.
  • 3) Aluminum alloy cable trays should not be used in places with high fire protection requirements in engineering.
  • 4) The selection of cable ladder width and height should meet the requirements of filling rate. In general, the filling rate of cable ladder can be 40% to 50% for power cables, 50% to 70% for control cables, and a 10% to 25% engineering development margin should be reserved.
  • 5) When selecting the load level of the cable ladder, the working uniform load of the cable tray should not exceed the rated uniform load of the selected cable tray load level. If the actual span of the support and hanger of the cable tray is not equal to 2 meters, the working uniform load should meet the requirements.
  • 6) Under the conditions of meeting corresponding loads, the specifications and dimensions of various components and supports and hangers should match the straight section and bending series of trays and ladders.
  • 7) When selecting the bending or up/down devices of the cable tray, they should not be less than the minimum allowable bending radius of the cable inside the cable tray. 8) For steel cable trays with a span greater than 6m and aluminum alloy cable trays with a span greater than 2m or a load-bearing requirement greater than load level D, strength, stiffness, and stability calculations or experimental verification should be carried out according to engineering conditions.
  • 8) The standard length of straight single pieces for ladder frames, aluminum alloy trays, and ladder frames can be 2, 3, 4, or 6 meters.
  • 9) Cables with different voltages and purposes should not be laid in the same layer of cable tray:
    A. Cables above 1kV and below 1kV;
    B. Double circuit cables supplying power to primary loads along the same path;
    C.Emergency lighting and other lighting cables;
    D. Power, control, and telecommunications cables. If cables of different levels are laid on the same cable tray, a partition should be added in the middle for isolation.

Process material

The RM-QJ-TJS series cable tray has surface coating processes including hot-dip galvanizing, plastic spraying, electroplating, wire drawing, and fireproof coating to meet various types of customer requirements. The material thickness, width, and height can be customized, and currently can support the processing and production of the following materials

RM-QJ-TJS04
  • Stainless steel material
RM-QJ-TJS02
  • Aluminum profile material
RM-QJ-TJS03

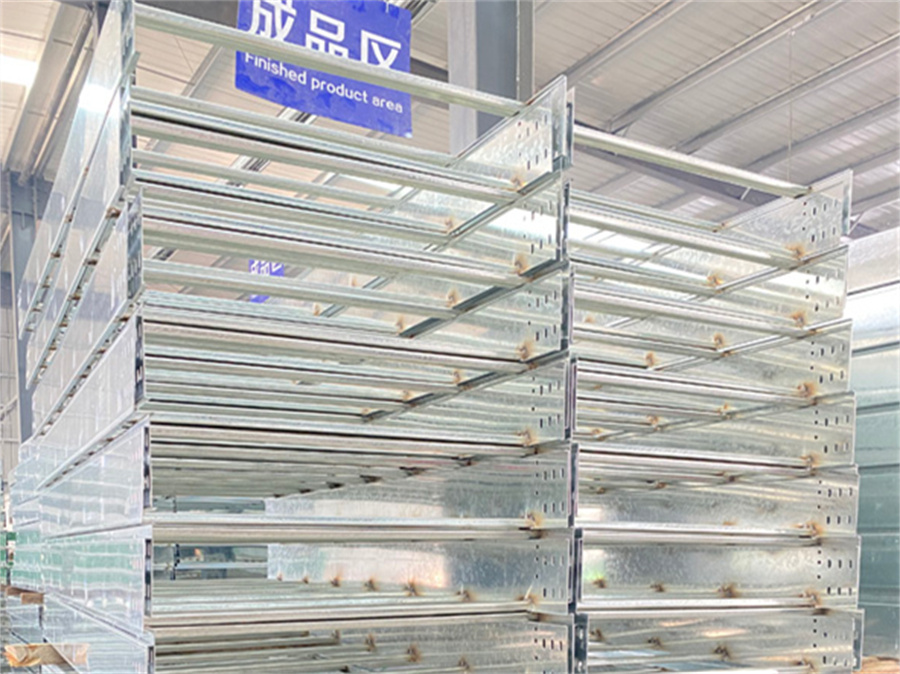

  • Galvanized sheet material
RM-QJ-TJS01
  • Cold rolled steel plate hot-dip galvanizing

Application Scenario

From this series of cable trays, it is mainly suitable for the upward routing of various types of cables, control cables, vertical sections of pipelines, and slope sections in buildings. It is suitable for

  • Architecture: Cable trays can be used for cable laying within buildings, such as office buildings, shopping malls, hospitals, schools, etc.
  • Computer room: In data centers, server rooms, and other places, it can be used to carry various cables, such as power cables, network cables, optical cables, etc.
  • Power: Cable trays can be used for cable laying in power systems, such as transmission lines, substations, power plants, etc.
  • Communication: In the field of communication, cable trays can be used to carry telephone lines, optical cables, radio equipment, etc.
  • Broadcasting and television: In the field of broadcasting and television, cable trays can be used to carry cables and antennas, such as television towers, broadcasting stations, etc
RM-QJ-TJS_05
RM-QJ-TJS_06

Transport packaging

The transportation and packaging of the bridge adopts stacking and bundling, with plastic protective film wrapped on the outside, anti-collision film wrapped on both ends and wooden boards fixed, and a wooden pallet for forking below. The overall waterproof and moisture-proof design is convenient for forking, and the length should not exceed the width of the container.

RM-QJ-TJS_08

Contact Us

RM-QJ-TJS_11

Customer service: This series of products comes in various sizes. Please consult our sales personnel for specific models. Please refer to our official website's contact channel for contact information

RM-QJ-TJS_12

Customization service: For special customization requirements in special scenarios, customers can provide us with design copy, and we will customize the design and production according to the requirements to maximize customer satisfaction

RM-QJ-TJS_13

Installation guidance: For customers who have reached a cooperation agreement, if you have any technical issues during the installation process, you can consult our sales personnel 7 * 24 hours. We will wholeheartedly serve you and provide the most professional technical guidance
