Wall Mounted Weatherproof Outdoor Electrical Enclosure Box RM-ODCS-WM
The RM-ODCS-WM series Wall Mounted Weatherproof Outdoor Electrical Enclosure Box is designed to meet various types of wall mounted installation requirements in urban areas, such as corridors, outdoor walls, weak current wells, basements, etc. Its main purpose is to provide continuous power, network, and monitoring functions for monitoring equipment, communication equipment, transportation equipment, and environmental detection equipment, and to provide a stable and reliable operating environment for distributed devices in urban outdoor environments. It has the characteristics of small size, suitable capacity, and low cost, meeting large-scale deployment and suitable for multiple industries.
Product Features
- The appearance of this series of weatherproof electrical box can be developed and designed according to customer requirements, with size design based on equipment capacity and internal space layout design
- Product functional zoning is configured based on device attributes, such as whether power supply and distribution, temperature control equipment, optical fiber, lightning protection system, waterproof level, etc. are required
- This series of outdoor electrical box has high integration, small size, reasonable spatial design, and coordinated appearance proportion
- This series of products is suitable for scenarios such as road traffic, security monitoring, meteorological environment detection, and communication network integration
Classification
The RM-ODCS-WM series chassis comes in various sizes and application scenarios. The following are typical application case models.
| modelparameter |
Wall mounted equipment chassis |
||||
|
model |
RM-ODCS-WM 1 |
RM-ODCS-WM2 |
RM-ODCS-WM 3 |
RM-ODCS-WM 4 |
|
|
Overall dimensions |
mm |
350*320*90 |
350*300*150 |
520*650*350 |
600*440*273 |
|
quality |
KG |
5 |
5 |
12 |
10 |
|
Installation method |
△ |
Wall mounted installation |
|||
|
Ambient Temperature |
℃ |
-40 ～ +55 |
|||
|
IP degree |
IPX55 |
IPX34 |
IPX55 |
||
|
Number of equipment installed |
unit |
No equipment installation space provided |
Wireless signal transmission equipment | ||
|
|
Integrated device parameters |
||||
|
AC portion |
Input /output |
AC input: single-phase 220V 32A2P × 1 Air switch |
Fiber optic passive equipment |
||
|
AC lightning protection:C-level MAX maximum 40KA |
|||||
|
Temperature control equipment |
Ceiling mounted fan unit, 2AC temperature controlled fans |
||||
|
ODF |
Provide a fully equipped 12 core ODF system |
48 D |
|||
RM-ODCS-WM 1
RM-ODCS-WM 2
RM-ODCS-WM 3
RM-ODCS-WM-4
Structural diagram
RM-ODCS-WM 3
RM-ODCS-WM 4

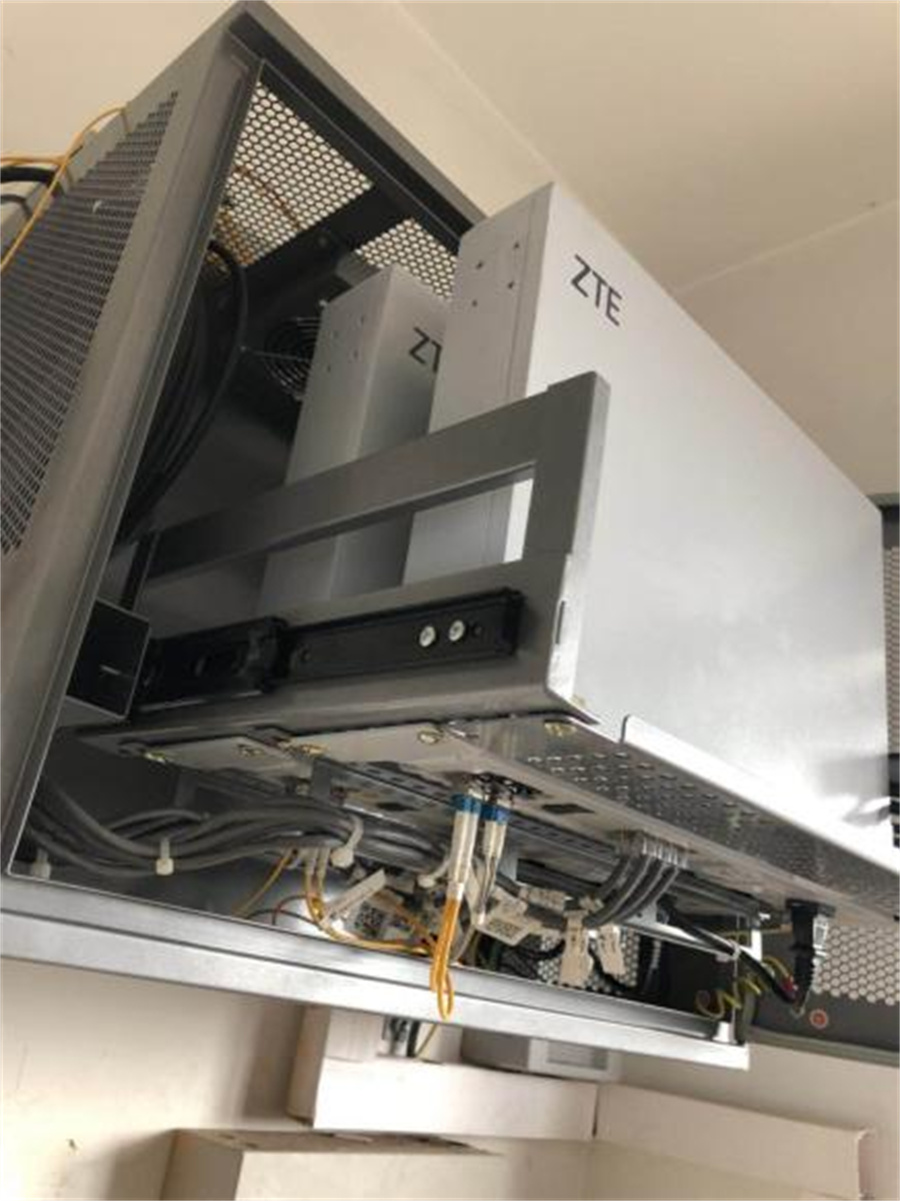

Physical application
Packaging and transportation
The RM-ODCS-PM series chassis is packaged in a dedicated cardboard box, wrapped with protective film, and equipped with a load-bearing tray at the bottom for easy forklift transportation.
Product Services
Customized service: Our company designs and manufactures the RM-ODCS-WM series chassis, which can provide customers with customized designs, including product dimensions, functional zoning, equipment integration and control integration, material customization, and other functions.
Guidance services: the purchase of my company's products to customers to enjoy life-long product use guidance services, including the transportation, installation, application, disassembly.
After sales service: Our company provides remote video and voice after-sales online services, as well as lifelong paid replacement services for spare parts
Technical service: our company can provide every customer with complete pre-sale service, including prophase technical solution discussion, finalize the design, configuration, and other services
The RM-ODCS-WM series chassis is suitable for various industry applications, including communication, transportation, monitoring, environment, municipal beautification, and other scenarios.
